Erase Items
In TOTAL Sketch, you can easily erase a small segment of a line, symbol, or label using the built‑in eraser tool. The eraser tools works like digital "white out" allowing you to eliminate a small segment of a line in order to place a door in the white space, for example. To use TOTAL Sketch's eraser:

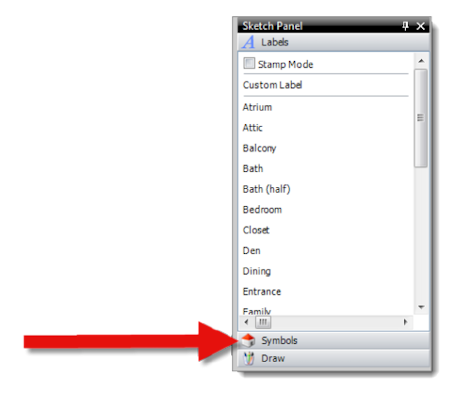

In a sketch, click the Symbols icon.

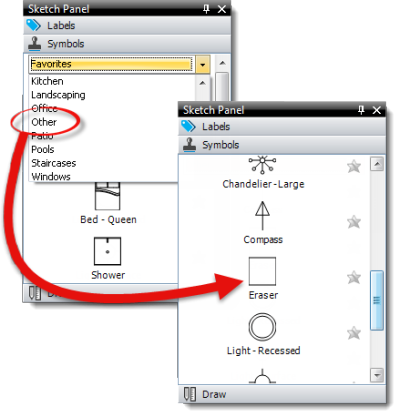

Click the drop‑down menu at the top, select the Other category, and click to select the Eraser symbol.
Once the eraser appears in the sketch, it's attached to your cursor. Position your cursor over the location where you want to drop it and click to place the eraser symbol. When placed, it obscures or "whites out" any symbols, lines, labels, or other sketch elements below it.
From there, adjust or remove the eraser as necessary:
To rotate the eraser, click and drag the green circle above it.
To delete the eraser, select it and press Delete on your keyboard, or click the Delete icon (
) in the sketch toolbar.To move the eraser, click and drag it to the desired location.
To resize the eraser, select any one of the black circles — called "handles" — surrounding the image and drag the "handle" to shrink or enlarge the symbol. To keep the proportions in sync, right‑click the symbol, hover over the label description, and select Constrain Proportions before resizing it, or simply hold down the Shift key while dragging one of the handles.
