The Sketch panel provides quick access to some of the most frequently used
tools when sketching: Labels, Symbols, and Draw mode.

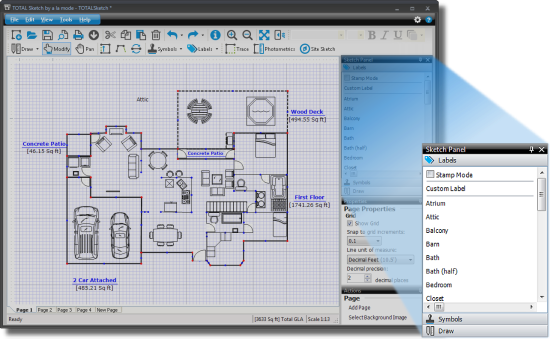

The Labels section is displayed by default in the
Sketch Panel and lists all of the stock labels built‑in to
TOTAL Sketch as well as any custom labels you've created.
- To add a label to your
sketch, simply select it from the list and then click the desired location on
your sketch to place it.
- To add the same label multiple times to different areas of your sketch,
check Stamp Mode
at the top of the list before selecting a label. Then, click to place your
label in each location. When you're finished, simply uncheck the Stamp
Mode option.
- To create a one‑time label without adding it to your list of labels, click
Custom Label
at the top of the list, click the desired location on your sketch to place
your cursor, type the text as you want it to appear, and press
Enter to add it to your sketch.
- To add a new label to your list, or to modify and delete any existing
labels, click Edit
List… at the bottom.
For more information about working with Labels, click here
to view the main topic.

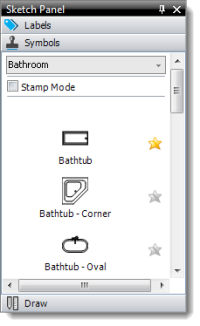

The Symbols section of the Sketch Panel
offers easy access to the symbols available in TOTAL Sketch. Click the
Symbols tab in the Sketch Panel to access
it.
- To add a symbol, select the
symbol category from the drop‑down list at the top and select your symbol from
the list. Then, click the desired location on your sketch to place it.
- To add the same symbol multiple times to different areas of your sketch,
check Stamp Mode
at the top of the list before selecting your symbol. Then, click to place your
symbol in each location. When you're finished, simply uncheck the
Stamp Mode option.
- To add a symbol to your Favorites category, click the
star icon (
) to the right of the symbol. Once
you've added a symbol to your favorites, access it by selecting the
Favorites category from the drop‑down list at the top.
- To manage your list of favorite symbols, click Manage Favorites at the bottom
of the list.
For more information about working with Symbols, click here
to view the main topic.
The Draw section of the Sketch Panel allows
you to quickly choose between different wall types and shapes when sketching.
Click the Draw tab in the Sketch Panel to access it. Click a link below for
detailed information pertaining to each Draw mode:
