Once you've exported the scan from ScanToSketch®, check out the video below, and continue reading for tips on reviewing and editing your sketch:
(Video Only - No Audio)

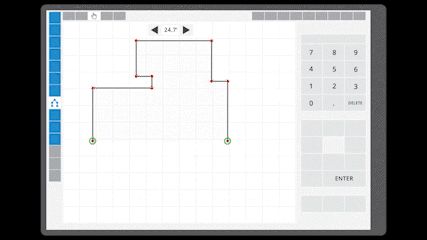

Adjust any walls by selecting the connecting wall and using the keypad to lengthen and shorten the parallel walls.
Tap to select an area and use the rotate tool to adjust the orientation of your sketch.
Drop room labels to label each room of the property.
Double‑tap a room label to add photos and enter data for a room without leaving the Sketch PowerView. Photos and data automatically transfer to the corresponding sections of your report.
Stitch Scans Together

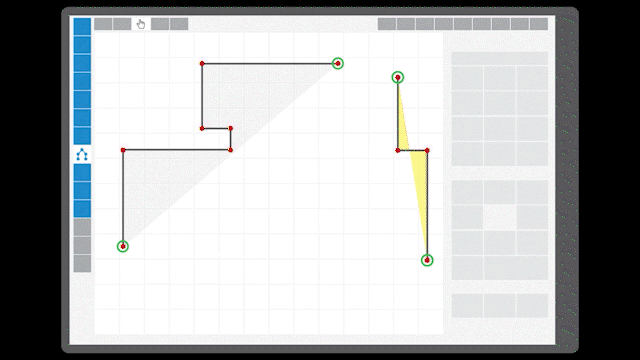

Click to select a line segment and drag the open‑end green circles together to stitch them together.

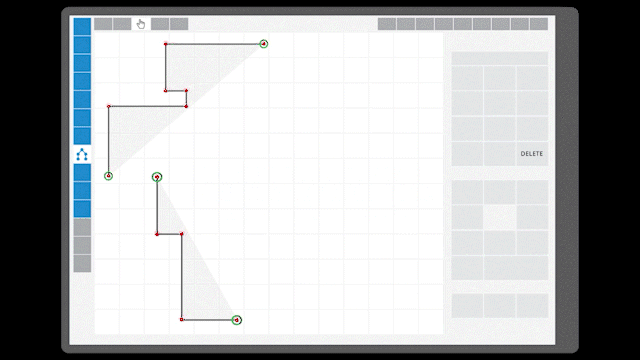

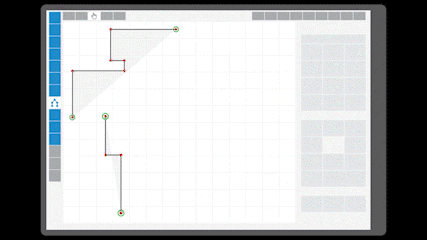

Click the arrows on the slides below for animated tips on how to stitch multiple, unclosed scans together to create a complete sketch:
1. Delete
2. Rotate
3. Move
4. Connect
5. Edit
6. Close
Merge and Combine Areas
Scan in different areas separately, and then drag and drop them to combine and merge them together in the sketcher. Use the green guide lines for precision when merging areas together.
Check out the video below for merging examples.
