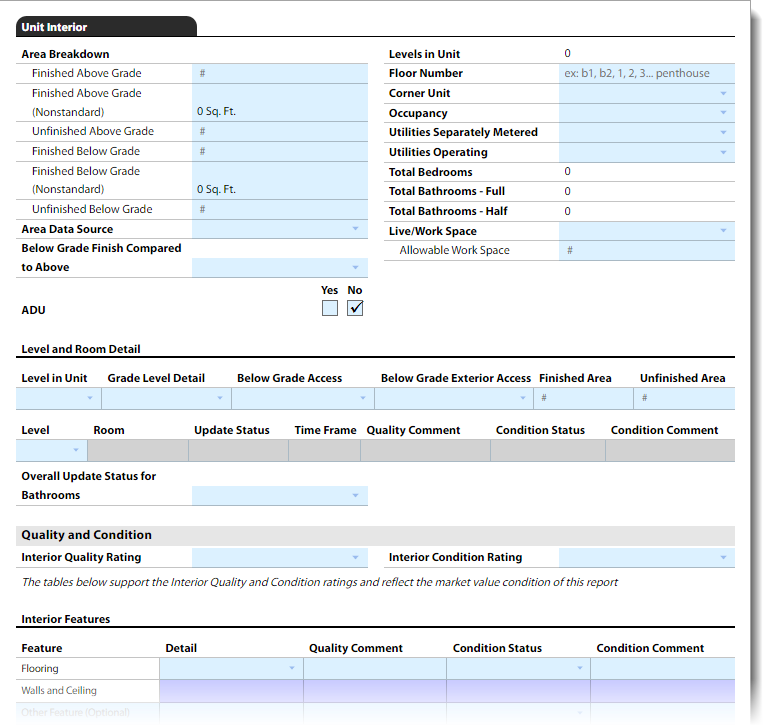

Unit Interior

The Unit Interior section captures details about the interior layout, quality, condition, and features of each unit. It includes space for accessibility features, commentary, exhibits, and notes on any apparent defects, damages, or deficiencies. This section is repeated for each unit in the property.

In TOTAL, the data entry interface is designed to closely match the appearance of the printed report. However, there are some differences in the Unit Interior section compared to the final output so that quality and condition of certain rooms can be more easily entered.

Room List

In the top section, data is only required in the fields relevant to your subject. Certain fields such as Levels in Unit and the bedroom and bathroom count are calculated from the Level and Room Detail subsection.

  • Enter all levels for the property first. Use the buttons in the UAD Guidance section to add (or remove) levels.

  • Then enter all rooms. Use the buttons in the UAD Guidance section to add (or remove) rooms.

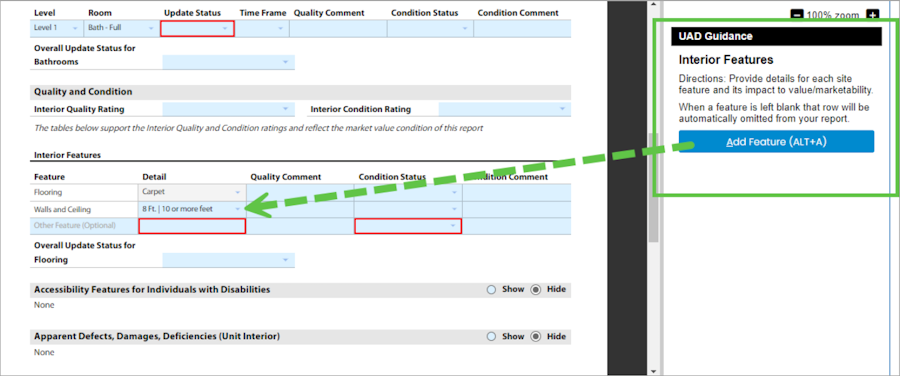

Interior Features

The Interior Features table works like many of the other tables in TOTAL’s UAD 3.6 report. To add or delete rows from the table, look to the UAD Guidance section that is always present on the right side of the screen.

Continue below for instructions on data entry:

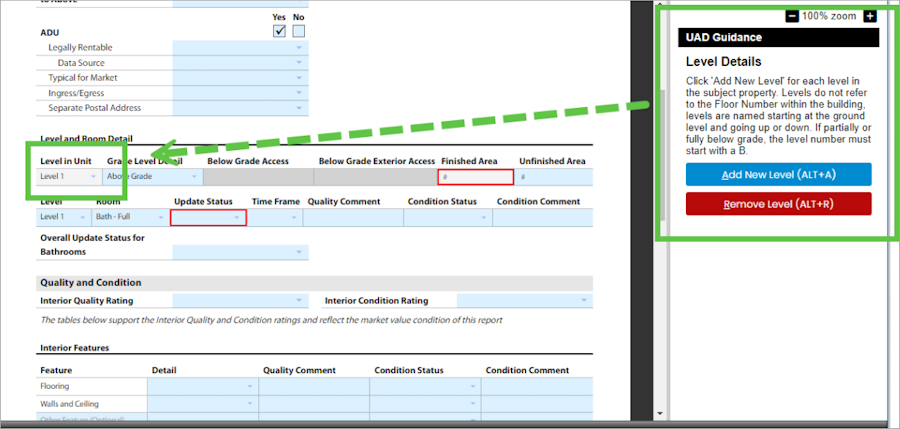

  1. Complete the Level and Room Detail table:

    • Add each level in the Level in Unit column (for example, Level 1 or Level B1 for a basement) and select Above Grade or Below Grade in the Grade Level Detail column.

    • For a basement or below-grade level, select the Below Grade Access and Below Grade Exterior Access options.

    • Enter the square footage for each level in Finished (Standard), Finished (Nonstandard), and Unfinished Area. Enter finished area that meets the ANSI standard in Finished (Standard), and enter finished area that does not meet the ANSI ceiling-height standard in Finished (Nonstandard). These entries automatically populate the Area Breakdown totals at the top of the section.

    • Add each room on the level, then specify update status, time frame, quality comments, condition status, and condition comments. Include overall update status for bathrooms.

  2. In the Area Breakdown section at the top of the form, review the calculated above-grade and below-grade square footage totals, then select the Area Data Source and Below Grade Finish Compared to Above (when applicable).

  3. Complete the remaining unit details at the top of the form:

    • Review the calculated Levels in Unit, Total Bedrooms, Total Bathrooms - Full, and Total Bathrooms - Half fields. Bedroom and bathroom counts cover the entire dwelling and are not separated above and below grade.

    • Complete Occupancy, Utilities Operating, Floor Number, Corner Unit status, Utilities (specify if separately metered and type of service), Live/Work Space, and Allowable Work Space, and indicate if an ADU (Accessory Dwelling Unit) exists.

  4. Enter Quality and Condition Ratings for the interior. See Overall Quality and Condition for details on how interior, exterior, and overall ratings relate to the sales comparison grid.

  5. Fill in the Interior Features table: - Add features such as Flooring and Walls/Ceiling. - Provide details, quality comments, condition status, and condition comments. - Include overall update status for flooring.

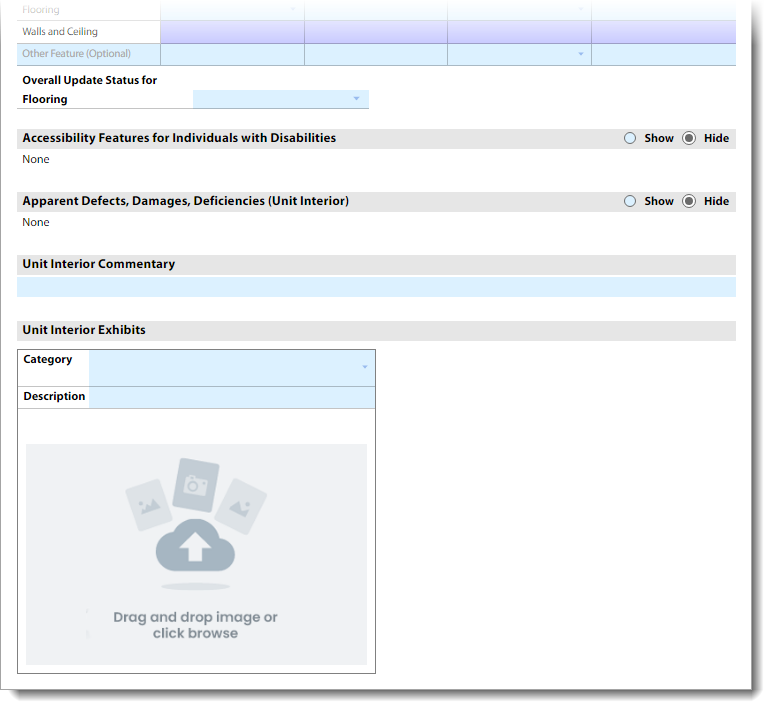

  6. Show or hide the Accessibility Features for Individuals with Disabilities section. If shown, document any accessibility features present.

  7. Show or hide the Apparent Defects, Damages, Deficiencies (Unit Interior) section. If shown, record any issues observed.

  8. Add commentary in the Unit Interior Commentary field to provide additional context or explanations.

  9. Complete the Exhibits section for any required photo slots (such as kitchen, bathroom, or apparent defect photos) and click + Add Exhibit in the Report Settings pane to add optional photos: - Select a Category or enter a Description (or both where required; if no category fits, enter a clear Description). - Drag and drop images or click to browse. See Working with UAD 3.6 Photos and Exhibits for details.
