Sketch Pages

As you sketch, you may find that you need to add additional pages in order to accommodate all the areas necessary to sketch the property.  The pages you add in TOTAL for Mobile conveniently transfer to individual pages in your report when they're transferred back to WinTOTAL or TOTAL.

Add a Page

To add a page to your sketch:

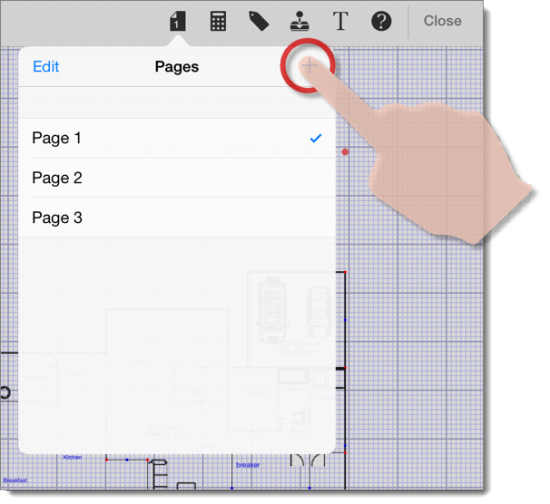

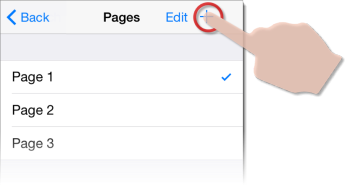

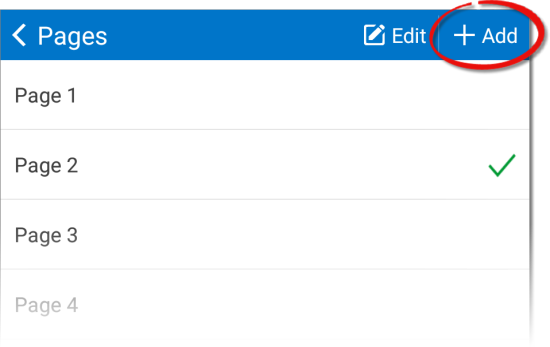

  1. While you're in a sketch in TOTAL for Mobile, tap the Pages icon (  ) on the upper-right.  If you are using an iPhone or a similar device with a smaller screen, press the fn key on your sketch keyboard, and then tap page.
  2. In the window that appears, tap the plus sign on the upper-right.

After tapping the plus sign, a new page is added, and you're taken to the new, blank sketch canvas.




Go to a Page

If you have multiple pages in your sketch, follow the instructions below to toggle between them:

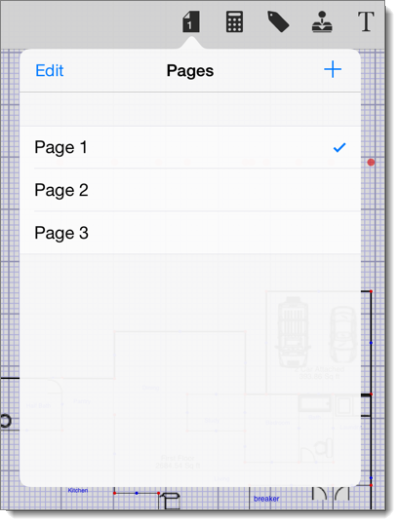

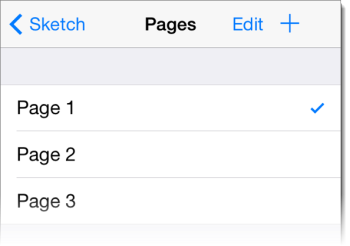

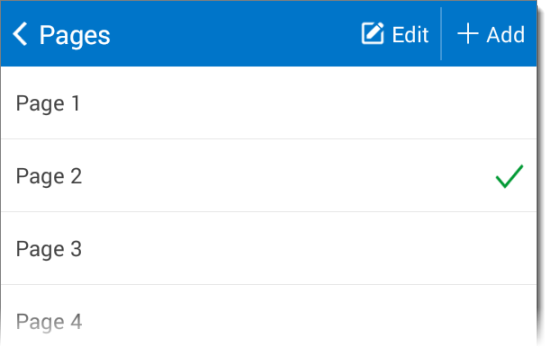

  1. While you're in a sketch in TOTAL for Mobile, tap the Pages icon (  ) on the upper-right.  If you are using an iPhone or a device with a smaller screen, press the fn key on your sketch keyboard, and then tap page.
  2. In the Pages window, the list of existing pages is displayed.  The page you're currently viewing is indicated with a check mark on the right.
  3. Tap any page in the list to select that page and resume sketching.




Rearrange or Delete a Page

To rearrange pages or delete a page from your sketch:

  1. While you're in a sketch in TOTAL for Mobile, tap the Pages icon (  ) on the upper-right.  If you're using an iPhone, a smartphone, or a similar device with a smaller screen, press the fn key on your sketch keyboard, and then tap page.
  2. In the dialog that appears, press Edit.
  3. Tap and drag the textured icon (  ) to rearrange the pages in your sketch.  Or, press the delete icon (  ) beside a page you want to remove and tap the Delete button (  ) that appears to confirm deletion.
  4. Press Done to return to the list of pages.
