Draw Arcs

To draw an arc:

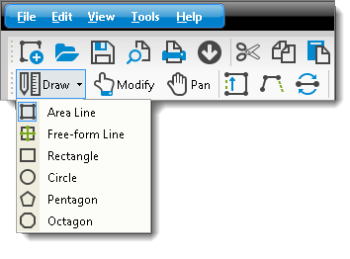

  1. In a sketch, click the Draw button in the toolbar at the top or choose the Draw panel at the right side of the screen to enter Draw Mode.

  2. Draw an area line segment that matches the diameter of the arc in length. For instance, if the diameter of the arc is 10 feet, you'd draw a line of 10 feet in length.
  3. As necessary, adjust the angle of the area line segment by writing the exact angle between the arc line and its adjacent line by writing the exact angle over top of the existing angle label.

  4. Click the Modify button in the main toolbar.
  5. Next, to apply the arc, click and hold the blue center point of the line and drag it in the direction you wish to bend the arc.

  6. Watch the angle designated by the red numbers and the radius of the arc as designated by the numbers along the dotted lines.
  7. Once the angles approximate the exact arc you need, return to Draw Mode by clicking Draw in the main toolbar at the top of the screen.
  8. Adjust the arc to the exact length and angle you need, by writing the length over top of the existing length label or the exact angle over top of the existing angle label.
