Crop Images

To crop an image in your report you can either use TOTAL's inline image editing toolbar OR crop the image in the Image Optimizer.  To crop an image in the Image Optimizer:

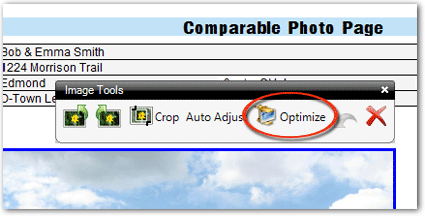

1. In TOTAL's Forms PowerView, scroll to the form containing the images you would like to crop, select the image and click Crop to crop the image directly from the report, or click optimize to crop from the image optimizer.  You can also optimize images from the Photos PowerView by selecting the image and clicking optimize in the Photo Sources pane.  (If you're cropping the image directly in your your report, skip to Step 3.)

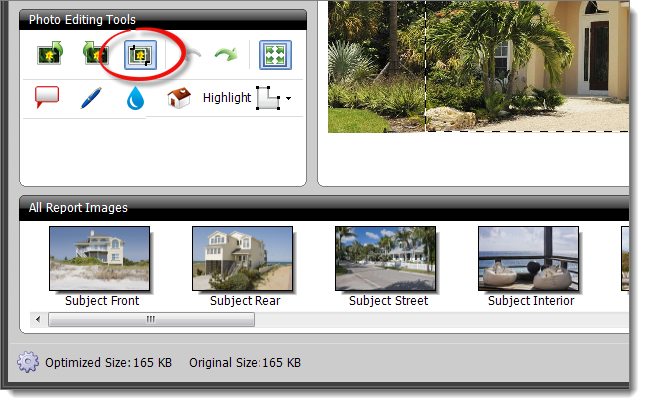

2. From the Image optimizer, Click the Crop button in the Photo Editing Tools to the left of the image preview.

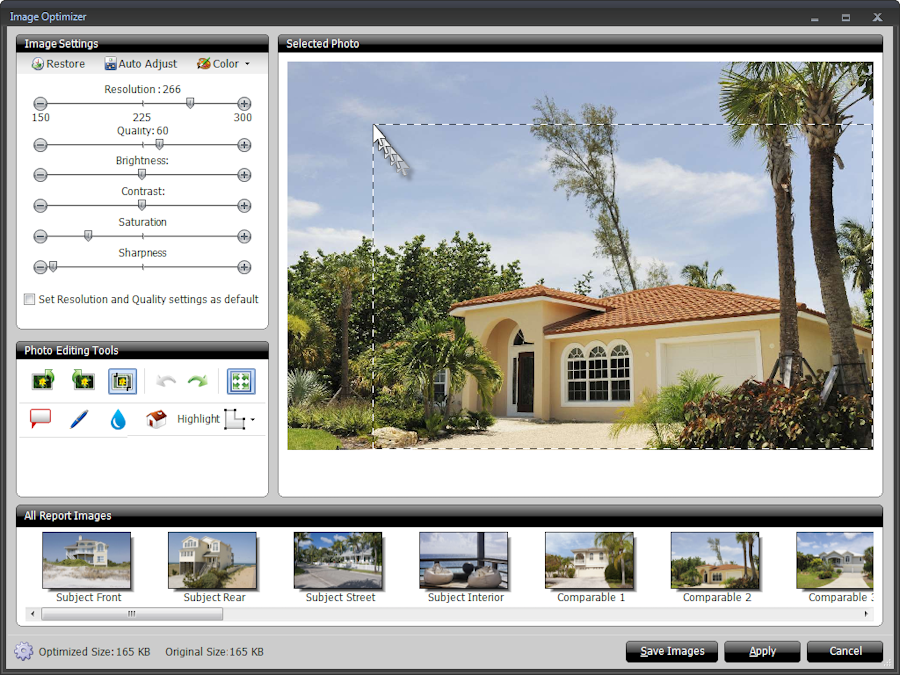

3. Click and drag to draw a rectangle around the area you want to keep.  To maintain the aspect ratio of the original image when cropping, hold down your Shift key while clicking and dragging.



4. Release the click to crop the image around your selection.
5. Click Save Images to lock in your change.
